TATA-LPT-1116
Tata

TATA-LPT-1116

TATA-LPT-1116

Description

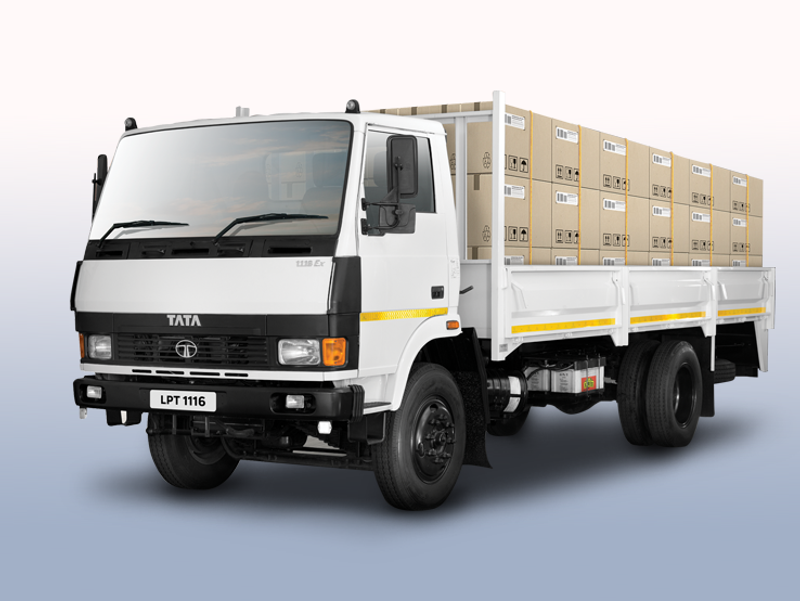

The Tata Light Truck LPT 1116 is another option for those looking to get a light commercial vehicle for their business. It is equipped with a full forward tilt cab for convenient access into the engine and space for the occupants. Loading capacity is that of 11 tonne.

Specifications Techniques

Moteur
The LPT 1116 has an engine capacity of 5675 cc with the TATA 697 TCIC and engine power of 118 Kw @ 2400 rpm with a engine torque of 550 Nm @ 1500-1700 rpm
Embrayage
330 mm
Boite de Vitesses
G - 600 synchromesh. No. of gears : 6 F + 1 R with PTO provision & PTO fitment optional
Roues
Tyres : 8.25 X 20 - 14 PR || Wheel Rims : 6.00 G X 20 SDC and No. of Wheels : Front - 2, Rear - 4, Spare - 1
Essieux
Front Axle : Heavy duty forged I beam reverse elliot type || Rear Axle : Single reduction, hypoid gears, fully floating axle shafts
Freins
Service Brakes : Dual circuit, full air S-Cam brake || Parking Brake : Spring actuated parking brake on rear wheels || Engine Exhaust Brake : Coupled with service brake
Reservoir
Capacity : 160 Litres , Diesel
Suspension
Type: Semi elliptical leaf spring at front and auxiliary springs at rear. || Shock Absorber : Hydraullic double acting telescopic type at front and rear.
Dimensions
Wheel base : 4200 (mm) || Overall Length : 7645 (mm) || Max. Width : 2270 (mm) || Max. Height : 2430 (mm) || Front Overhang : 1275 (mm)
Performance
Max. Geared Speed in Top Gear: 105 Kmph || Max. Climbing Ability in 1st Gear : 34% || Min. Turning Circle Dia in m : 15.4 || Min.Turning Clearance Circle Dia in m : 18.4
Electrique
CAB: Full Forward tilt cabin
Logistics

Type

Light Commercial Vehicle
